TORX® Screwdriver Bits

TORX® Power Bits,Torsion,Titanium Coating,Diamond Coated Tip

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	D(mm)	Pack
1142-0110DT	Torx T10	50	2"	4.0	1
1142-0115DT	Torx T15	50	2"	4.0	1
1142-0120DT	Torx T20	50	2"	4.8	1

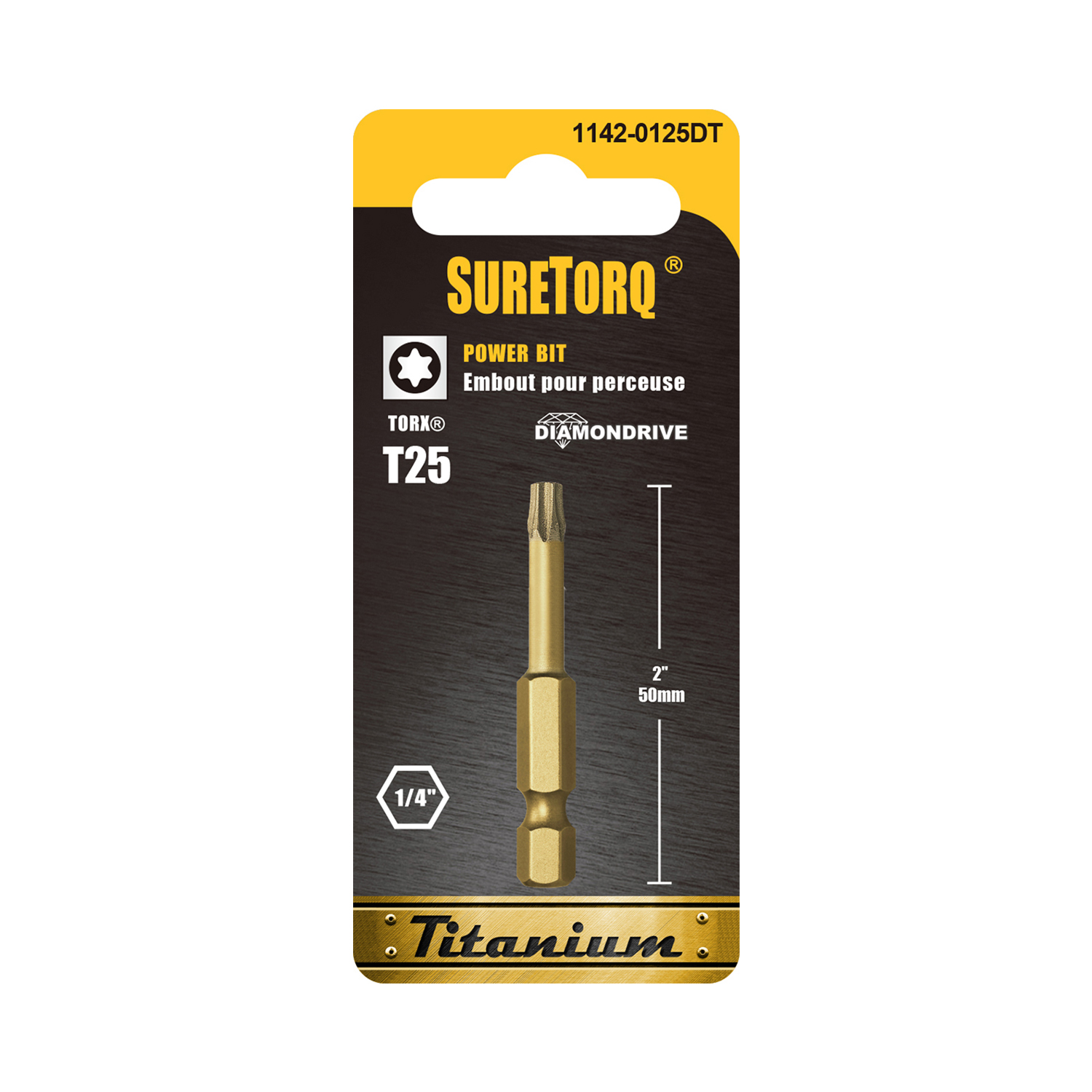

1142-0125DT	Torx T25	50	2"	5.0	1
1142-0127DT	Torx T27	50	2"	6.0	1
1142-0130DT	Torx T30	50	2"	6.2	1
1142-0140DT	Torx T40	50	2"	-	1

TORX® Power Bits,Torsion,Titanium Coating

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	D(mm)	Pack
1142-0110TC	Torx T10	50	2"	4.0	1
1142-0115TC	Torx T15	50	2"	4.0	1
1142-0120TC	Torx T20	50	2"	4.8	1

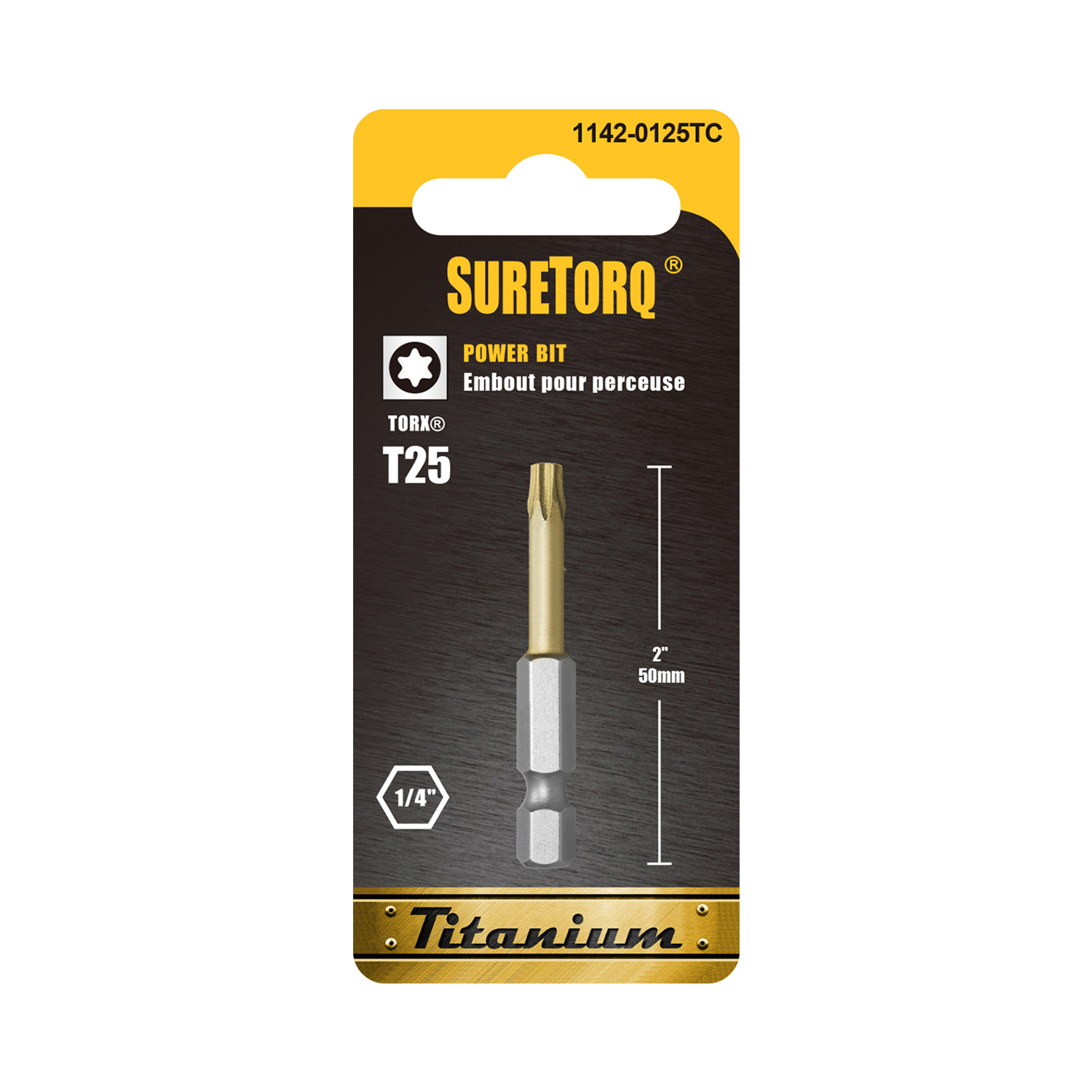

1142-0125TC	Torx T25	50	2"	5.0	1
1142-0127TC	Torx T27	50	2"	6.0	1
1142-0130TC	Torx T30	50	2"	6.2	1
1142-0140TC	Torx T40	50	2"	-	1

TORX® Insert Bits

Standard: DIN 3126,ISO 1173,C 6.3 Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
1141-0205	Torx T5	25	1"	2
1141-0206	Torx T6	25	1"	2
1141-0207	Torx T7	25	1"	2
1141-0208	Torx T8	25	1"	2
1141-0210	Torx T10	25	1"	2
1141-0215	Torx T15	25	1"	2
1141-0120	Torx T20	25	1"	2

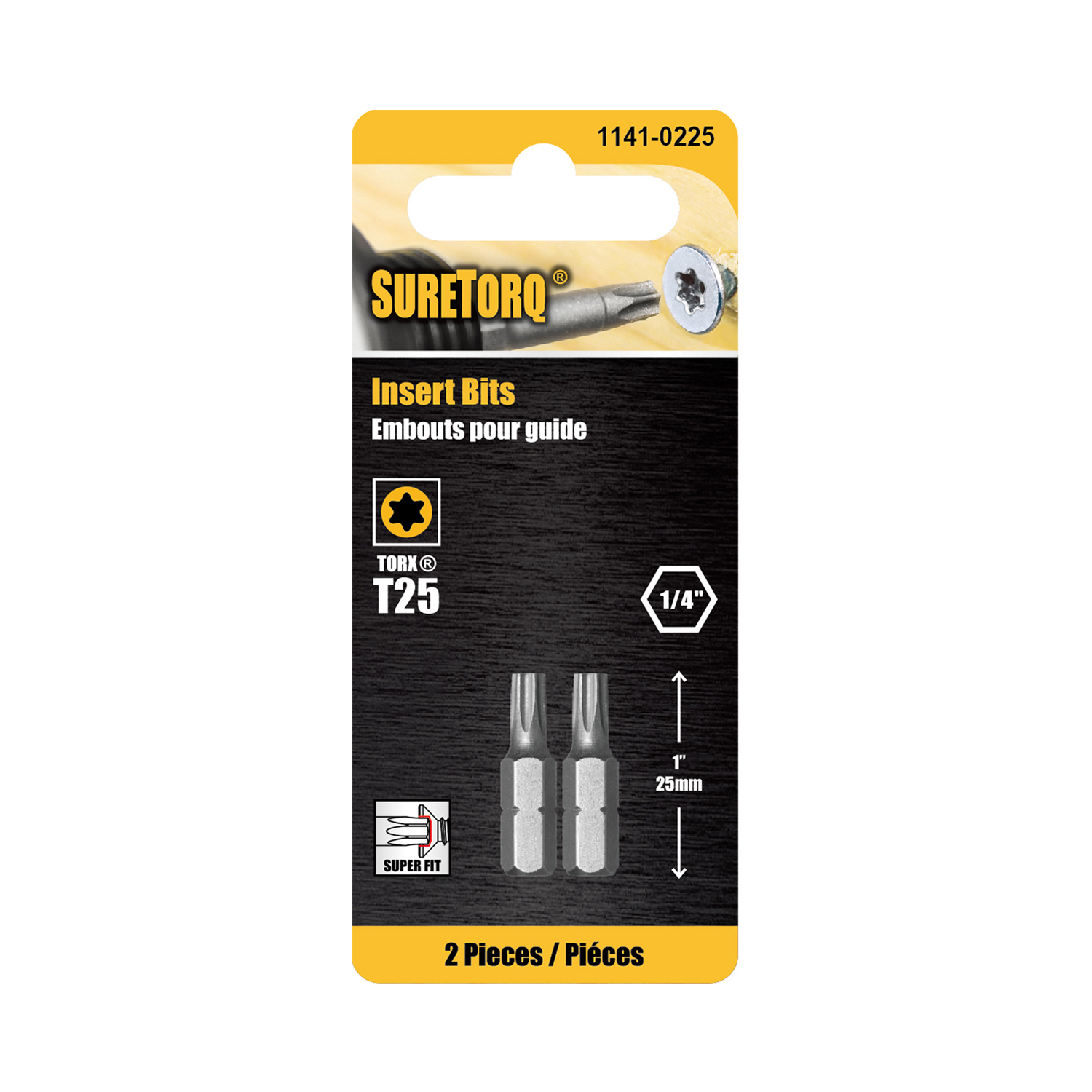

1141-0225	Torx T25	25	1"	2
1141-0227	Torx T27	25	1"	2
1141-0230	Torx T30	25	1"	2
1141-0240	Torx T40	25	1"	2
1141-0520	Torx T20	25	1"	5
1141-0525	Torx T25	25	1"	5
1141-0700	Torx T10,T15,T20,	25	1"	7
	T25,T27,T30,T40

TORX® Insert Bits,H5/16

Standard: DIN 3126,ISO 1173,C 8 Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
1141-0145	Torx T45	32	1-1/4"	1
1141-0150	Torx T50	32	1-1/4"	1

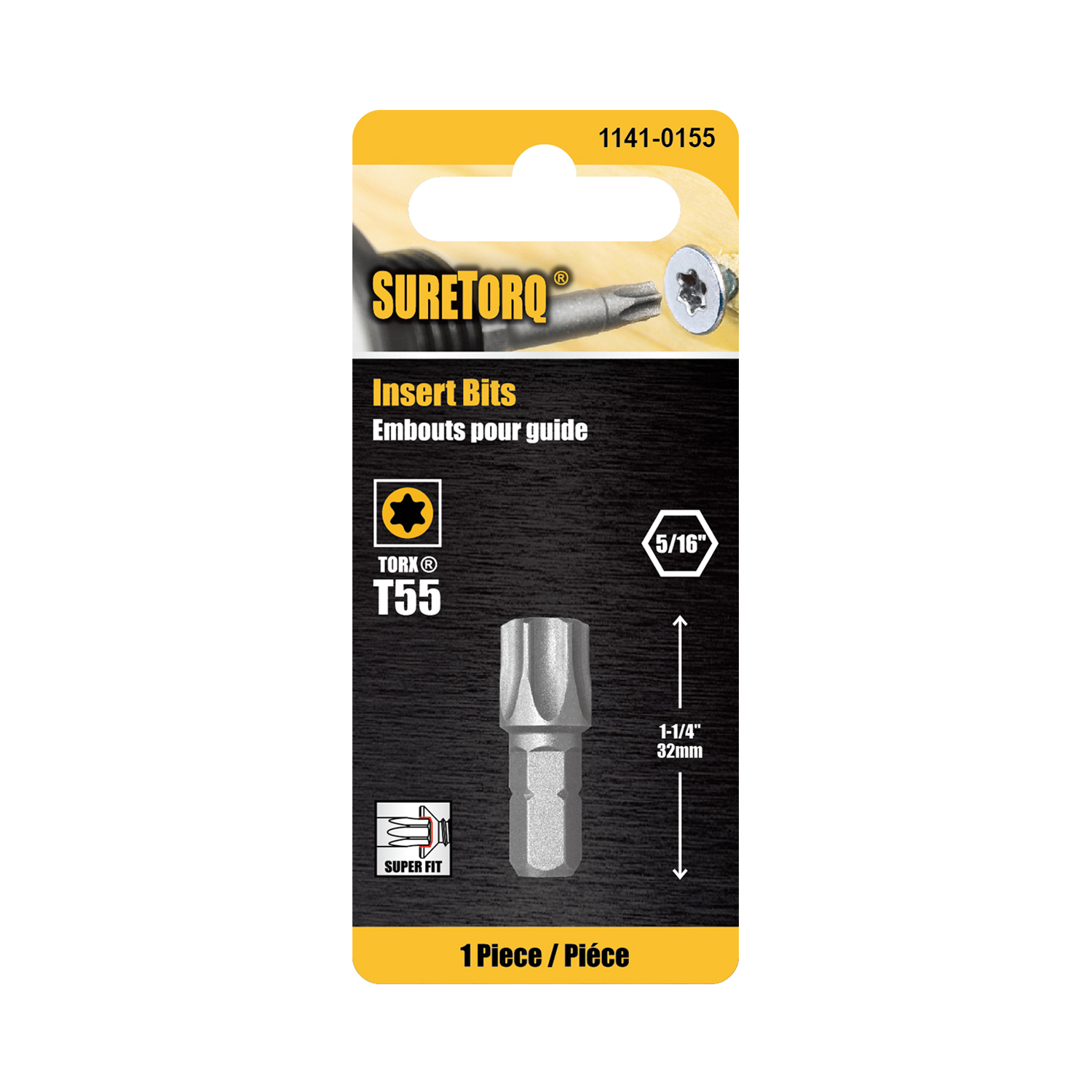

1141-0155	Torx T55	32	1-1/4"	1
1141-0160	Torx T60	32	1-1/4"	1

TORX® Power Bits

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	Pack
1142-0105	Torx T5	50	2"	2
1142-0106	Torx T6	50	2"	2
1142-0107	Torx T7	50	2"	2
1142-0108	Torx T8	50	2"	2
1142-0110	Torx T10	50	2"	2
1142-0115	Torx T15	50	2"	2
1142-0120	Torx T20	50	2"	2

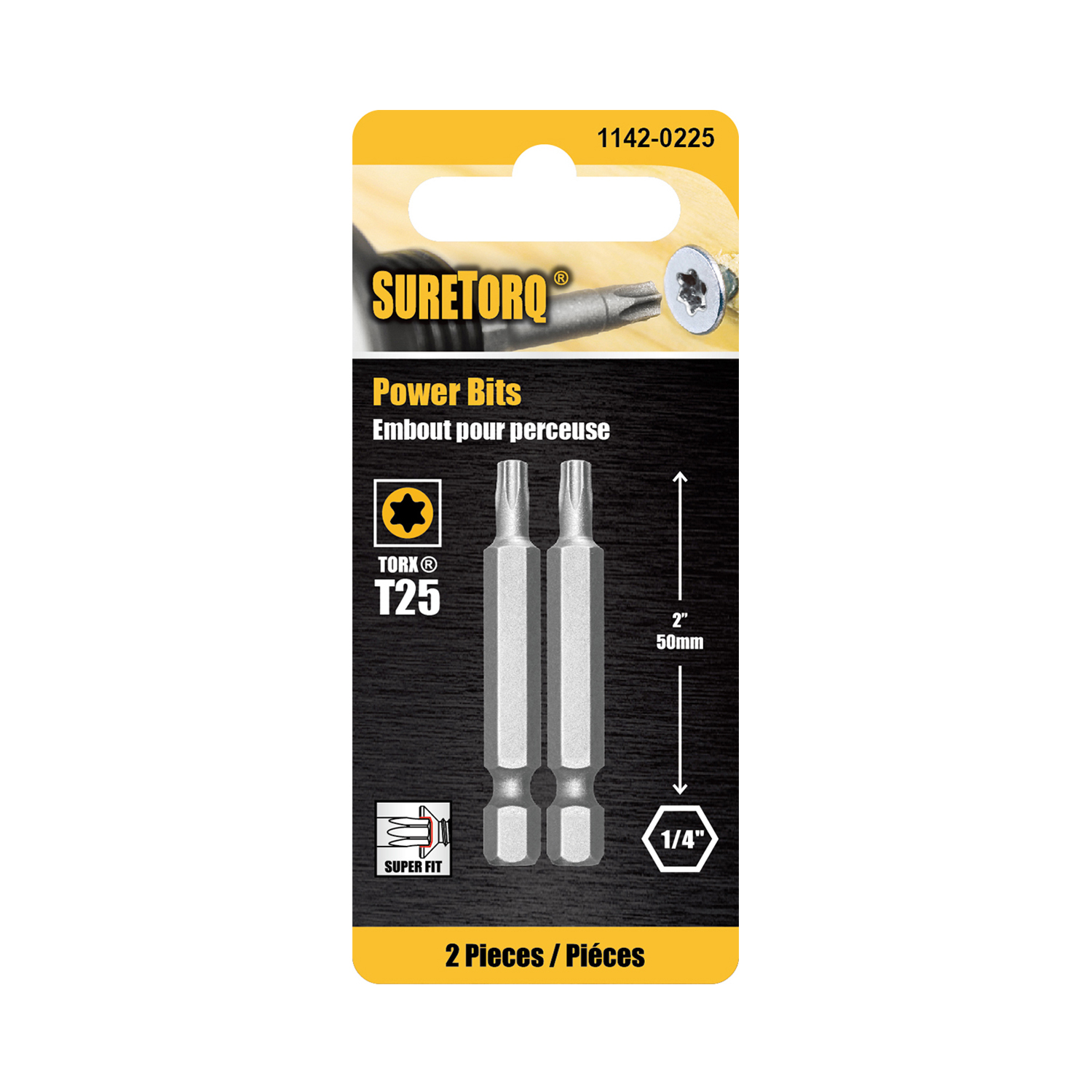

1142-0125	Torx T25	50	2"	2
1142-0127	Torx T27	50	2"	2
1142-0130	Torx T30	50	2"	2
1142-0140	Torx T40	50	2"	2
1142-0520	Torx T20	50	2"	5
1142-0525	Torx T25	50	2"	5
1142-0600	Torx T15x2,T20x2,T25x2	50	2"	6
1147-0110	Torx T10	75	3"	1
1147-0115	Torx T15	75	3"	1
1147-0120	Torx T20	75	3"	1
1147-0125	Torx T25	75	3"	1
1147-0127	Torx T27	75	3"	1
1147-0130	Torx T30	75	3"	1
1147-0140	Torx T40	75	3"	1
1143-0110	Torx T10	89	3-1/2"	1
1143-0115	Torx T15	89	3-1/2"	1
1143-0120	Torx T20	89	3-1/2"	1
1143-0125	Torx T25	89	3-1/2"	1
1143-0127	Torx T27	89	3-1/2"	1
1143-0130	Torx T30	89	3-1/2"	1
1143-0140	Torx T40	89	3-1/2"	1
1146-0110	Torx T10	150	6"	1
1146-0115	Torx T15	150	6"	1
1146-0120	Torx T20	150	6"	1
1146-0125	Torx T25	150	6"	1
1146-0127	Torx T27	150	6"	1
1146-0130	Torx T30	150	6"	1
1146-0240	Torx T40	150	6"	1

TORX® Power Bits,Turned Down Shank

Standard: DIN 3126,ISO 1173,E 6.3 Origin: China Introduction: Retail Package

Code	Size	L(mm)	L(inch)	D(mm)	Pack
1142-0110D40	Torx T10	50	2"	4.0	2
1142-0115D40	Torx T15	50	2"	4.0	2
1142-0120D48	Torx T20	50	2"	4.8	2
1142-0125D50	Torx T25	50	2"	5.0	2
1142-0127D60	Torx T27	50	2"	6.0	2
1142-0130D62	Torx T30	50	2"	6.2	2
1147-0110D40	Torx T10	75	3"	4.0	1
1147-0115D40	Torx T15	75	3"	4.0	1
1147-0120D48	Torx T20	75	3"	4.8	1
1147-0125D50	Torx T25	75	3"	5.0	1
1147-0127D60	Torx T27	75	3"	6.0	1
1147-0130D62	Torx T30	75	3"	6.2	1
1143-0110D40	Torx T10	89	3-1/2"	4.0	1
1143-0115D40	Torx T15	89	3-1/2"	4.0	1
1143-0120D40	Torx T20	89	3-1/2"	4.8	1
1143-0125D50	Torx T25	89	3-1/2"	5.0	1
1143-0127D60	Torx T27	89	3-1/2"	6.0	1
1143-0130D62	Torx T30	89	3-1/2"	6.2	1
1146-0110D40	Torx T10	150	6"	4.0	1
1146-0115D40	Torx T15	150	6"	4.0	1
1146-0120D58	Torx T20	150	6"	4.8	1
1146-0125D50	Torx T25	150	6"	5.0	1
1146-0127D60	Torx T27	150	6"	6.0	1
1146-0130D62	Torx T30	150	6"	6.2	1
